The Standard 1U Rack, Provides 4 Service Slots OEO/EDFA/OLP, 1 Fan Slot and 2 Power Slots

The — F-tone standard 1U rack offers 4 service slots for OEO, EDFA, and OLP functions, 1 fan slot, and 2 power slots, a solution for networking applications with requirements.

产品详情

产品参数 — F-tone
外壳类型	可机架安装	服务槽位	4 Slots
Power Supply	Dual Power AC: 90～260V or DC: -36～-72V	功耗	60W (Typical)
Transmission Capacity of Single Equipment	16 * 10G Bidirectional Transmission 32 * 10G Unidirectional Transmission	波长	CWDM: 1270nm～1610nm DWDM: C Band, 100 GHZ or 50 GHZ
工作湿度范围	5~95% No Condensation	尺寸（毫米）	44 (H) x 442(W) x 220(D)
工作温度范围	商业级/工业级/军品级可选	储存温度范围	商业级/工业级/军品级可选

外壳类型	可机架安装	服务槽位	4 Slots
Power Supply	Dual Power AC: 90～260V or DC: -36～-72V	功耗	60W (Typical)
Transmission Capacity of Single Equipment	16 * 10G Bidirectional Transmission 32 * 10G Unidirectional Transmission	波长	CWDM: 1270nm～1610nm DWDM: C Band, 100 GHZ or 50 GHZ
工作湿度范围	5~95% No Condensation	尺寸（毫米）	44 (H) x 442(W) x 220(D)
工作温度范围	-10 ℃～60 ℃ (Typical)	储存温度范围	-40℃～85℃

1U Chassis Supports A Unified Network Management Platform and Integrated C/DWDM Platform of The Optical Transmission Network System

Product Details

Quality Assurance

Excellent quality is the foundation of F-tone’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

FT-OTN Systems

Save Optical Fiber In Huge Bandwidth Need

: 40 channels system; Access capacity:80G

: 40 channels system; Access capacity:160G

: 40/48/80/96 channels system; Access capacity; 400G ➨ 960G➨ 4T➨ 9.6T

WDM Gets Down To The Edge And Provides Limitless Bandwidth Resources In Limited Fiber

F-tone FT-OTN System Includes the Following Two Parts

Customized Solutions, Self-help Selection of Our FT-OTN System Function Modules

OTN Platform

: 1 Main Chassis 1U/2U/5U

: 2 Power Supply Module

: 3 Network Management Unit

OTN Function Module

: Transponder (OEO)

: Amplifier Modules

: Dispersion Compensation

: Une Protection

our advantages

: Short Lead Time; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

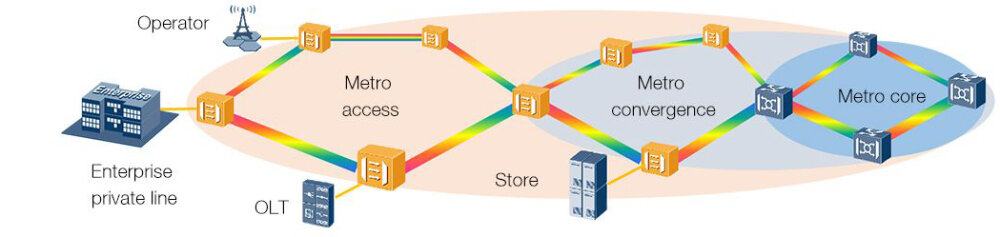

Practical Application Demonstration

As a kind of transmission technology with huge capacity and long-distance coverage is now widely used in the backbone, convergence and access layer of metropolitan area network.

本产品为北亿纤通产品线，详细信息，请联系我们的销售人员，谢谢！
