F-tone 5U frame offers support for up to 18 service slots including OEO, EDFA, OLP, DCM, CWDM, and DWDM functions, it is an ideal solution for advanced networking applications.
产品详情
| 产品参数 — F-tone | |||
| 外壳类型 | 可机架安装 | 服务槽位 | 18 Slots |
| Power Supply | Dual Power AC: 90～260V or DC: -36～-72V | 功耗 | 300W (Typical) |
| Maximum Wavelength Number | CWDM: 96 Wavelength DWDM: 16 Wavelength | 波长 | CWDM: 1270nm～1610nm DWDM: C Band, 100 GHZ or 50 GHZ |
| 工作湿度范围 | 5~95% No Condensation | 工作温度范围 | 商业级/工业级/军品级可选 |
| 储存温度范围 | 商业级/工业级/军品级可选 | Dimensions mm | 220 (H) x 442(W) x 220(D) |
| 外壳类型 | 可机架安装 | 服务槽位 | 18 Slots |
| Power Supply | Dual Power AC: 90～260V or DC: -36～-72V |
功耗 | 300W (Typical) |
| Maximum Wavelength Number | CWDM: 96 Wavelength DWDM: 16 Wavelength |
波长 | CWDM: 1270nm～1610nm DWDM: C Band, 100 GHZ or 50 GHZ |
| 工作湿度范围 | 5~95% No Condensation | 工作温度范围 | -10 ℃～60 ℃ (Typical) |
| 储存温度范围 | -40℃～85℃ | Dimensions mm | 220 (H) x 442(W) x 220(D) |
Huge Capacity Transmission and Capacity of Modular Upgrade, Multi-rate, Multi-protocol, Full-Service Access and Convergence, Outstanding Architecture Design, and Secure Data Transmission
Quality Assurance
Quality Certification
FT-OTN Systems
Save Optical Fiber In Huge Bandwidth Need
- 40 channels system
- Access capacity:80G
- 40 channels system
- Access capacity:160G
- 40/48/80/96 channels system
- Access capacity
- 400G ➨ 960G➨ 4T➨ 9.6T
WDM Gets Down To The Edge And Provides Limitless Bandwidth Resources In Limited Fiber
F-tone FT-OTN System Includes the Following Two Parts
Customized Solutions, Self-help Selection of Our FT-OTN System Function Modules
OTN Platform

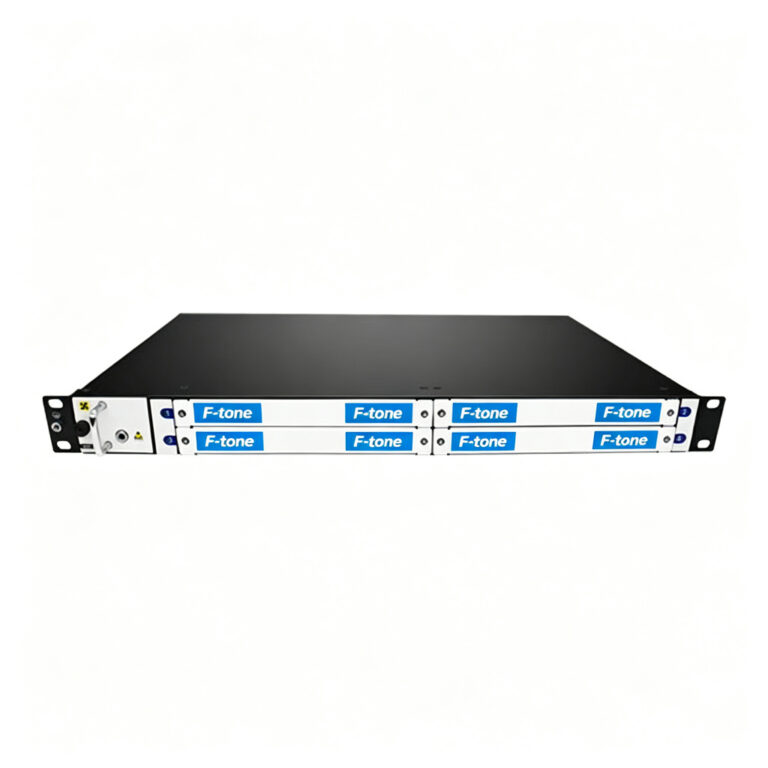

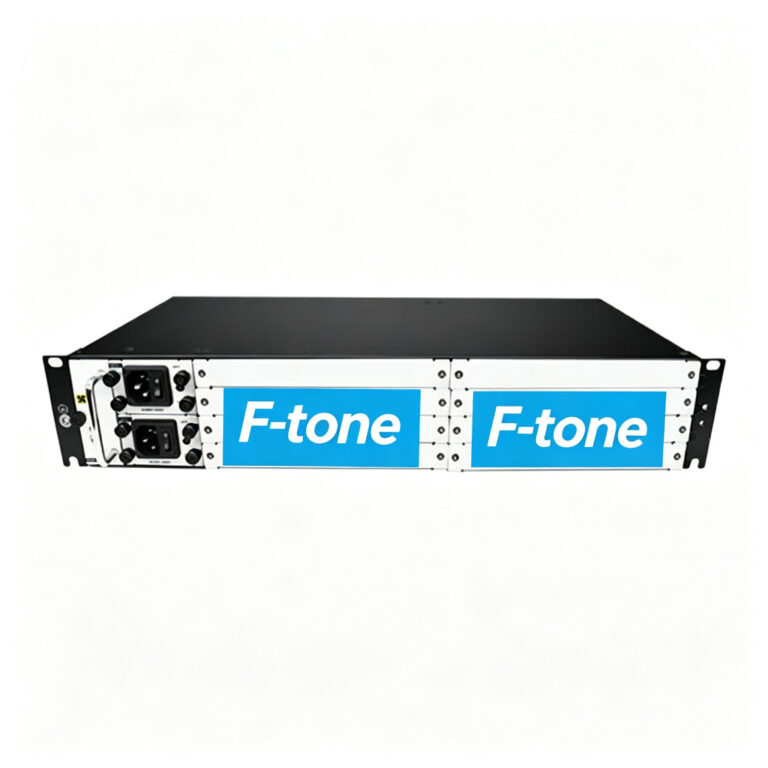

- 1 Main Chassis 1U/2U/5U
- 2 Power Supply Module
- 3 Network Management Unit
OTN Function Module
- Transponder (OEO)
- Amplifier Modules
- Dispersion Compensation
- Une Protection
our advantages
-
Short Lead Time
- Fast Delivery
-
Professional Service
- Technical Support
-
Worry-Free Guarantee
- Shopping Satisfactorily
-
Premium Quality
- High stability
Practical Application Demonstration
As a kind of transmission technology with huge capacity and long-distance coverage is now widely used in the backbone, convergence and access layer of metropolitan area network.
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
