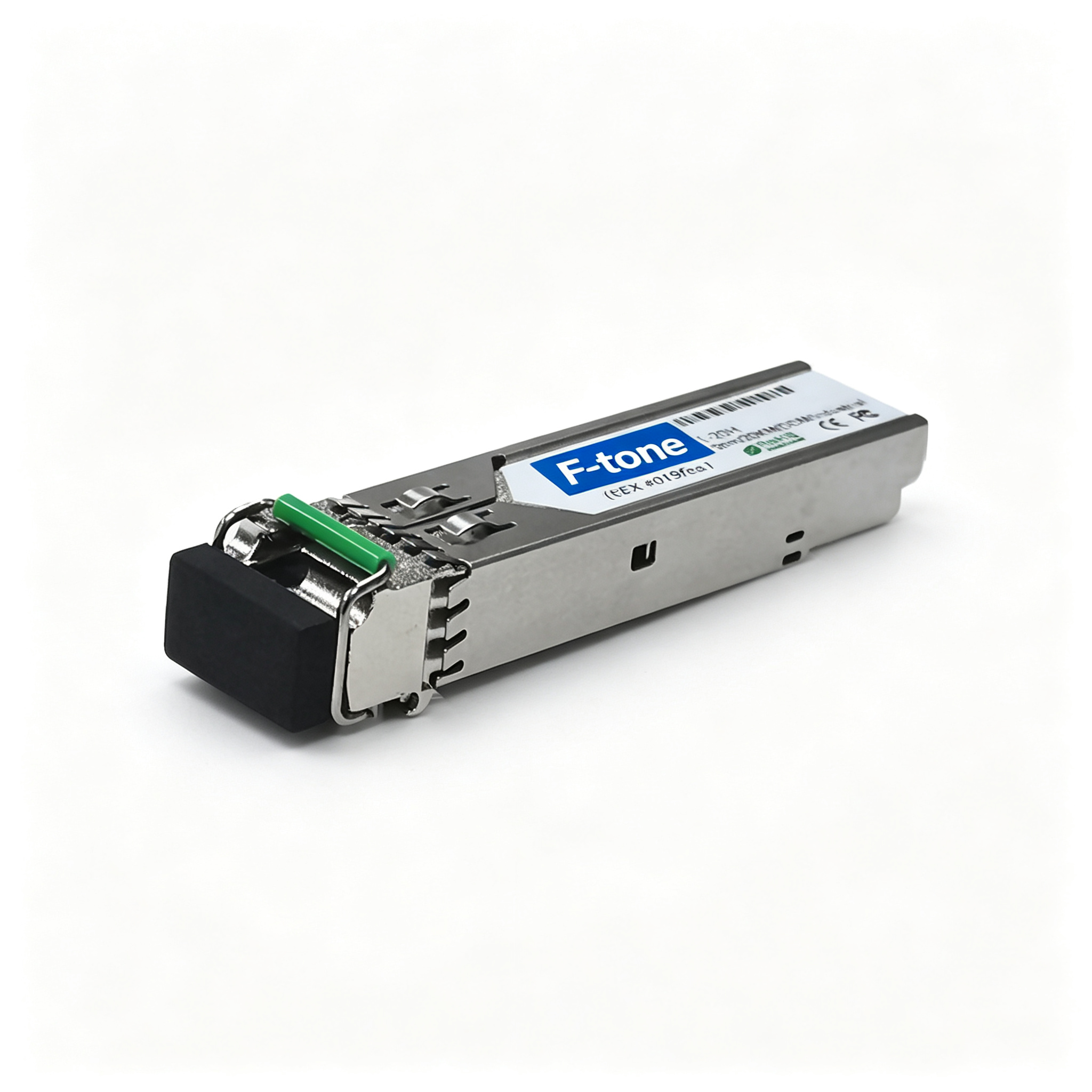

型号：SFP2-S31/55-20H 工业级千兆单纤SFP光模块，单模20km，LC
产品特点
Features: Single Mode bi-directional Transmission SFP Multi-source Package with LC Receptacle Up to 1.25Gb/s Data Links Hot-Pluggable Capability Single +3.3V Power Supply Isolation > 30dB, Cross Talk <<> -45dB Metal Enclosure, Excellent EMI & ESD Protection Monitoring interface compliant with SFF-8472 Compliant with BelSCore TA-NWT-000983 Eye Safety Designed to Meet Laser Class1, Compliant with IEC60825-1 Compliant with Specifications for IEEE802.3 RoHS Compliant
技术参数
Specification: Electrical and Optical Characteristics: (Condition: Ta=TOP) Transmitter(T1310nm): Transmitter(T1550nm):
| Parameter | Symbol | Min. | Typical | Max. | Unit |
| Transmitter Differential Input Voltage | +/-TX_DAT | 200 | 2400 | mV p-p | |
| Supply Current | ICC | 200 | 250 | mA | |
| Tx_Disable Input Voltage – Low | VIL | 0 | 0.8 | V | |
| Tx_Disable Input Voltage – High | VIH | 2.0 | Vcc | V | |
| Tx_Fault Output Voltage – Low | VOL | 0 | 0.8 | V | |
| Tx_Fault Output Voltage – High | VOH | 2.0 | Vcc | V | |
| Receiver Differential Output Voltage | +/-RX_DAT | 600 | 1400 | mV p-p | |
| Rx_LOS Output Voltage- Low | VOL | 0 | 0.8 | V | |
| Rx_LOS Output Voltage- High | VOH | 2.0 | Vcc | V |
| Parameter | Symbol | Min. | Typical | Max. | Unit |
| Data Rate | B | – | 1250 | – | Mb/s |
| Centre Wavelength | λc | 1260 | 1310 | 1360 | nm |
| Output Spectral Width | △λ(RMS) | – | – | 5 | nm |
| Average Output Power | Po | -9.5 | – | -3 | dBm |
| Extinction Ratio | E.R. | 9 | – | – | dB |
| Data Input Voltage-High | VIHS | Vcc-1.16 | – | Vcc-0.89 | V |
| Data Input Voltage -Low | VILS | Vcc-1.82 | – | Vcc-1.48 | V |
| Supply Current | ICC | – | 90 | 110 | mA |
| Output Optical Eye | Compliant with ITU-T G.957 | ||||
| Receiver(R1550nm): | |||||
| Parameter | Symbol | Min. | Typical | Max. | Unit |
| Receive Sensitivity | Pmin | – | – | -22 | dBm |
| Maximum Input Power | PMAX | -3 | – | – | dBm |
| Signal Detection-Asserted | PH-L | -35 | – | dBm | |
| Signal Detection-Deserted | PL-H | – | -23 | dBm | |
| Output High Voltage | VOH | Vcc-1.03 | – | Vcc-0.89 | V |
| Output Low Voltage | VOL | Vcc-1.82 | – | Vcc-1.63 | V |
| Operating Wavelength | λc | 1480 | 1550 | 1580 | nm |
| Supply Current | ICC | – | 80 | 110 | mA |
| Parameter | Symbol | Min. | Typical | Max. | Unit |
| Data Rate | B | – | 1250 | – | Mb/s |
| Centre Wavelength | λc | 1480 | 1550 | 1580 | nm |
| Output Spectral Width | △λ(RMS) | – | – | 1 | nm |
| Average Output Power | Po | -9.5 | – | -3 | dBm |
| Extinction Ratio | E.R. | 8 | – | – | dB |
| Data Input Voltage-High | VIHS | Vcc-1.16 | – | Vcc-0.89 | V |
| Data Input Voltage -Low | VILS | Vcc-1.82 | – | Vcc-1.48 | V |
| Supply Current | ICC | – | 90 | 110 | mA |
| Output Optical Eye | Compliant with ITU-T G.957 | ||||
| Receiver(R1310nm): | |||||
| Parameter | Symbol | Min. | Typical | Max. | Unit |
| Receive Sensitivity | Pmin | – | – | -22 | dBm |
| Maximum Input Power | PMAX | -3 | – | – | dBm |
| Signal Detection-Asserted | PH-L | -35 | – | dBm | |
| Signal Detection-Deserted | PL-H | – | -23 | dBm | |
| Output High Voltage | VOH | Vcc-1.03 | – | Vcc-0.89 | V |
| Output Low Voltage | VOL | Vcc-1.82 | – | Vcc-1.63 | V |
| Operating Wavelength | λc | 1260 | 1310 | 1360 | nm |
| Supply Current | ICC | – | 80 | 110 | mA |
订购信息
产品选型：
| 工业级SFP光模块 | ||
| 百兆多模单纤 | SFP1-S31/55-02H | 单纤双向 1km 1310nm/1550nm LC接口 多模 |
| SFP1-S55/31-02H | 单纤双向 1km 1550nm/1310nm LC接口 多模 | |
| 百兆单模单纤 | SFP1-S31/55-20H | 单纤双向20KM 1310nm/1550nm LC接口 |
| SFP1-S55/31-20H | 单纤双向20KM 1550nm/1310nm LC接口 | |
| SFP1-S31/55-40H | 单纤双向40KM 1310nm/1550nm LC接口 | |
| SFP1-S55/31-40H | 单纤双向40KM 1550nm/1310nm LC接口 | |
| SFP1-S31/55-60H | 单纤双向60KM 1310nm/1550nm LC接口 | |
| SFP1-S55/31-60H | 单纤双向60KM 1550nm/1310nm LC接口 | |
| SFP1-S31/55-80H | 单纤双向80KM 1310nm/1550nm LC接口 | |
| SFP1-S55/31-80H | 单纤双向80KM 1550nm/1310nm LC接口 | |
| 百兆多模双纤 | SFP1-M31-02H | 双纤双向 1km 1310nm LC接口 多模 |
| 百兆单模双纤 | SFP1-S31-20H | 双纤双向20KM 1310nm LC接口 |
| SFP1-S31-40H | 双纤双向40KM 1310nm LC接口 | |
| SFP1-S31-60H | 双纤双向60KM 1310nm LC接口 | |
| SFP1-S31-80H | 双纤双向80KM 1310nm LC接口 | |
| 千兆多模单纤 | SFP2-S31/55-02H | 单纤双向 1km 1310nm/1550nm LC接口 多模 |
| SFP2-S55/31-02H | 单纤双向 1km 1550nm/1310nm LC接口 多模 | |
| 千兆单模单纤 | SFP2-S31/55-20H | 单纤双向20KM 1310nm/1550nm LC接口 |
| SFP2-S55/31-20H | 单纤双向20KM 1550nm/1310nm LC接口 | |
| SFP2-S31/55-40H | 单纤双向40KM 1310nm/1550nm LC接口 | |
| SFP2-S55/31-40H | 单纤双向40KM 1550nm/1310nm LC接口 | |
| SFP2-S49/55-60H | 单纤双向60KM 1490nm/1550nm LC接口 | |
| SFP2-S55/49-60H | 单纤双向60KM 1550nm/1490nm LC接口 | |
| SFP2-S49/55-80H | 单纤双向80KM 1490nm/1550nm LC接口 | |
| SFP2-S55/49-80H | 单纤双向80KM 1550nm/1490nm LC接口 | |
| 千兆多模双纤 | SFP2-M85-02H | 双纤双向 500m 850nm LC接口 多模 |
| 千兆单模双纤 | SFP2-S31-20H | 双纤双向20KM 1310nm LC接口 |
| SFP2-S31-40H | 双纤双向40KM 1310nm LC接口 | |
| SFP2-S31-60H | 双纤双向60KM 1310nm LC接口 | |
| SFP2-S31-80H | 双纤双向80KM 1310nm LC接口 | |
| 万兆单模单纤 | SFP3-S33/27-10 | 单纤双向10KM 1330nm/1270nm LC接口 |
| SFP3-S27/33-10 | 单纤双向10KM 1270nm/1330nm LC接口 | |
| SFP3-S33/27-20 | 单纤双向20KM 1330nm/1270nm LC接口 | |
| SFP3-S27/33-20 | 单纤双向20KM 1270nm/1330nm LC接口 | |
| SFP3-S33/27-40 | 单纤双向40KM 1330nm/1270nm LC接口 | |
| SFP3-S27/33-40 | 单纤双向40KM 1270nm/1330nm LC接口 | |
| 万兆多模双纤 | SFP3-S85-03 | 双纤双向330m 850nm LC接口 多模 |
| 万兆单模双纤 | SFP3-S31-10 | 双纤双向10KM 1310nm LC接口 |
| SFP3-S31-20 | 双纤双向20KM 1310nm LC接口 | |
| SFP3-S55-40 | 双纤双向40KM 1550nm LC接口 | |
| 电口模块 | RJSM-100 | 10/100/1000M自适应 RJ45接口 |
工作温度：商业级/工业级/军品级可选
