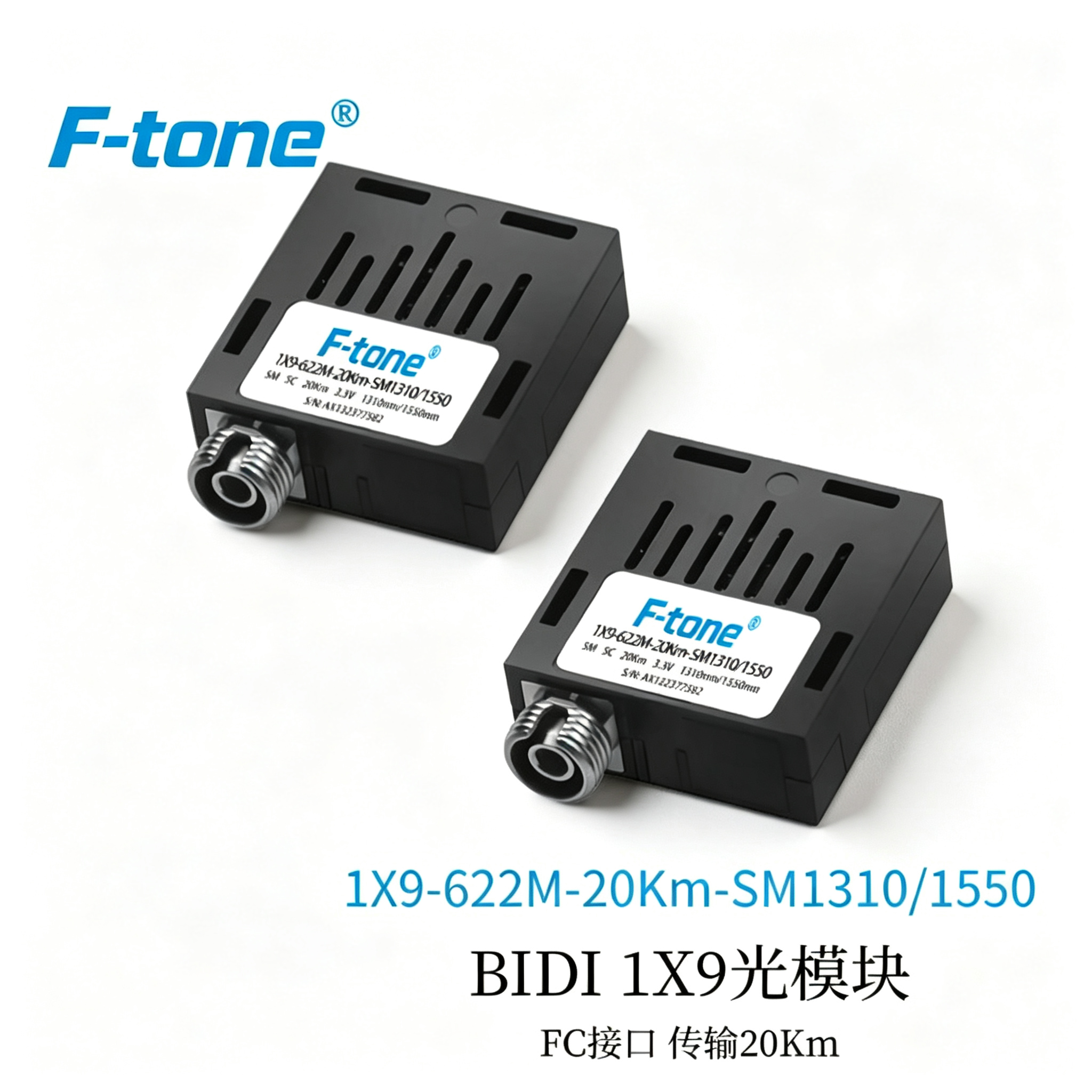

1*9光模块 622M BIDI SC 20KM | F-tone 北亿纤通

Feature：

SC/FC/ST receptacle optical interface and pigtail optical interface

Single mode Duplex fibers optical transceiver

+3.3V Power Supply

Standard PECL data output with signal detect indication

Multi-sourced 1×9 package

High quality 1310nm MQW-FP LD/1550nmDFB LD

Receiver has a planner InGaAsP PIN

Application

Applied to optical fiber transmission systems,such as SDH\ATM\Gigabit Ethernet with bit rate up to 622Mbps

产品型号 Product Model	速率 Data Rate	接头类型 Port	单多模 Fiber	波长 Wave(nm)	传输距离 Distance (KM)	电压 Voltage	信号电平 Signal Level	温度 Temp. (℃)
FT-W6352-**	622Mbps	SC/FC/ST	BIDI	SM 1310nm	20km	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
FT-W6532-**	622Mbps	SC/FC/ST	BIDI	SM 1550nm	20km	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
FT-W6354-**	622Mbps	SC/FC/ST	BIDI	SM 1310nm	40km	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
FT-W6534-**	622Mbps	SC/FC/ST	BIDI	SM 1550nm	40km	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
FT-W6356-**	622Mbps	SC/FC/ST	BIDI	SM 1310nm	60km	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
FT-W6536-**	622Mbps	SC/FC/ST	BIDI	SM 1550nm	60km	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
FT-W6456-**	622Mbps	SC/FC/ST	BIDI	SM 1490nm	60km	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
FT-W6546-**	622Mbps	SC/FC/ST	BIDI	SM 1550nm	60km	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
FT-W6458-**	622Mbps	SC/FC/ST	BIDI	SM 1490nm	80km	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
FT-W6548-**	622Mbps	SC/FC/ST	BIDI	SM 1550nm	80km	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
FT-W645X-**	622Mbps	SC/FC/ST	BIDI	SM 1490nm	100km	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
FT-W654X-**	622Mbps	SC/FC/ST	BIDI	SM 1550nm	100km	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
根据使用场景的不同，可选以下产品 Depending on the usage scenario, you can choose from the following products:
1. 接地工业级:-40~105°C(**FC/ST) 2. 2.过EMC-CLASS A(金属屏蔽罩+屏蔽外壳) 3. 3.LVPECL电平需第四脚TTL电平 4. 4.定制高品质FC/ST接头光模块(见上图) 5. 5.双芯片5V光模块需要以上光模块，可咨询厂家					1. Grounding industrialTemperature Range: -40°C to +105°C 2. EMC-CLASS A:Metallic shield and Plastic housing. 3.LVPECL-SD:LVTTL 4.Customizable FC/ST Metallized connector 5.5v Optical Modules For more information,please contactthe manufacturer!

工作温度：商业级/工业级/军品级可选

本产品为北亿纤通 | F-tone Networks 产品线，详细信息，请联系我们的销售人员，谢谢！Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. Further details are available from any Andxe System sales representative.
