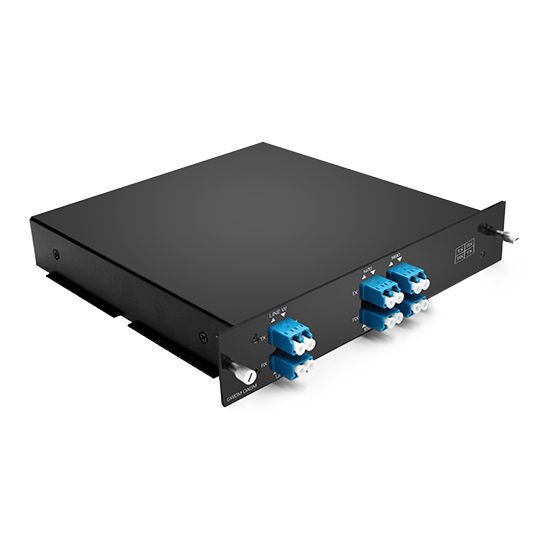

Passive — The LGX BOX OADM utilizes passive CWDM tech, supports 4 channels on double fiber, and is a cost-effective solution for network capacity expansion via specific wave length add/drop.
产品详情
| 产品参数 — F-tone | |||
| 工作波长 | 4 Channels 1270-1610nm | 通道间隔 | 20nm |
| 通道带宽 | ITU±6.5nm | 插入损耗 | ≤1.4dB |
| 方向性 | ≥50dB | 回波损耗 | ≥45dB |
| 传输方向 | West and/or east | 光纤类型 | SMF-28e or Customer Specified |
| 相邻信道隔离度 | ≥30dB | 非邻通道隔离度 | ≥40dB |
| 偏振相关损耗 | ≤0.2dB | 偏振模色散 | ≤0.1ps |
| 最大光功率 | 500mW | 尺寸(HxWxD) | 39x208x200mm |
| 工作温度 | 商业级/工业级/军品级可选 | 存储温度 | 商业级/工业级/军品级可选 |
| 工作波长 | 4 Channels 1270-1610nm | 通道间隔 | 20nm |
| 通道带宽 | ITU±6.5nm | 插入损耗 | ≤1.4dB |
| 方向性 | ≥50dB | 回波损耗 | ≥45dB |
| 传输方向 | West and/or east | 光纤类型 | SMF-28e or Customer Specified |
| 相邻信道隔离度 | ≥30dB | 非邻通道隔离度 | ≥40dB |
| 偏振相关损耗 | ≤0.2dB | 偏振模色散 | ≤0.1ps |
| 最大光功率 | 500mW | 尺寸(HxWxD) | 39x208x200mm |
| 工作温度 | 商业级/工业级/军品级可选 | 存储温度 | -40°C～+85°C |

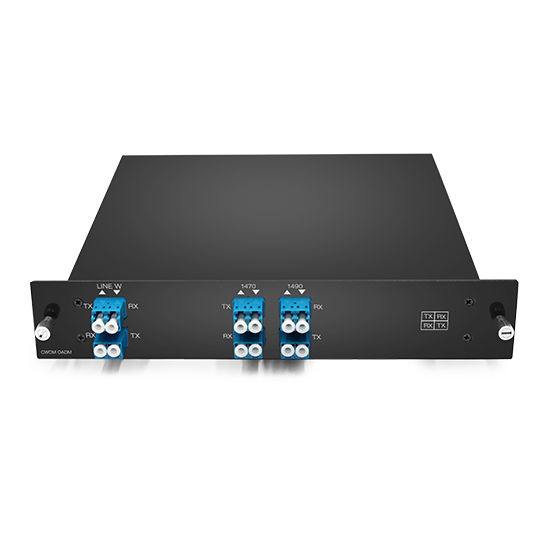

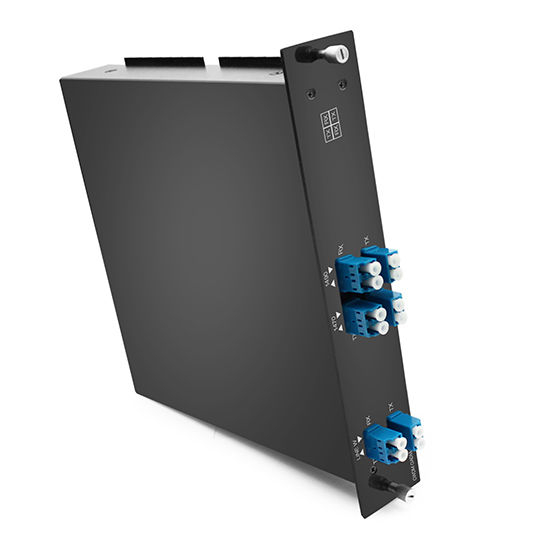

4 Channels CWDM OADM Dual Fiber East and/or West LGX BOX
Product Details
Quality Assurance
Excellent quality is the foundation of F-tone’ s survival and development. Our operation team are experts with many years’ experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Quality Assurance
Quality Certification
our advantages
-
Short Lead time
- Fast Delivery
-
Professional Service
- Technical Support
-
Worry-Free Guarantee
- Shopping Satisfactorily
-
Premium Quality
- High stability
Product Specification
| Number of channels | 4 | 8 | 16 |
|---|---|---|---|
| Wavelength range |
CWDM:1270nm to 1610nm DWDM:C Band, 100 GHZ or 50 GHZ |
||
| Insertion loss | < 1.5dB | < 2.5dB | < 3.5dB |
| Isolation ratio of adjacent channels | >30dB | >30dB | >30dB |
| Isolation ratio of non-adjacent channels | >40dB | >40dB | >40dB |
| Return loss | >45dB | >45dB | >45dB |
| Direction | >50dB | >50dB | >50dB |
| Interface type | All interfaces are LC type | ||
| Work temperature | -40〜85℃ | ||
| Storage temperature | -40〜85℃ | ||
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
