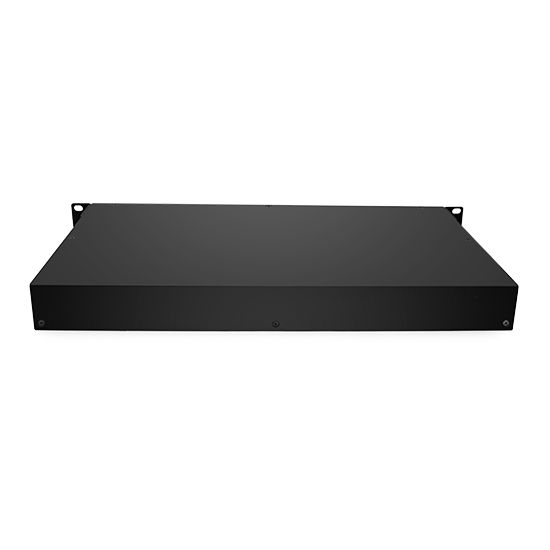

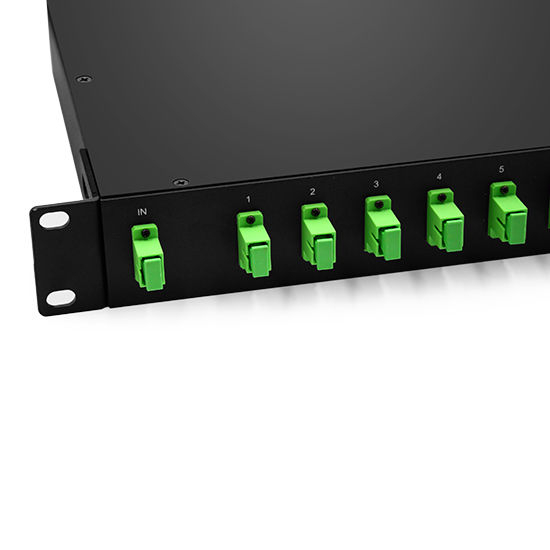

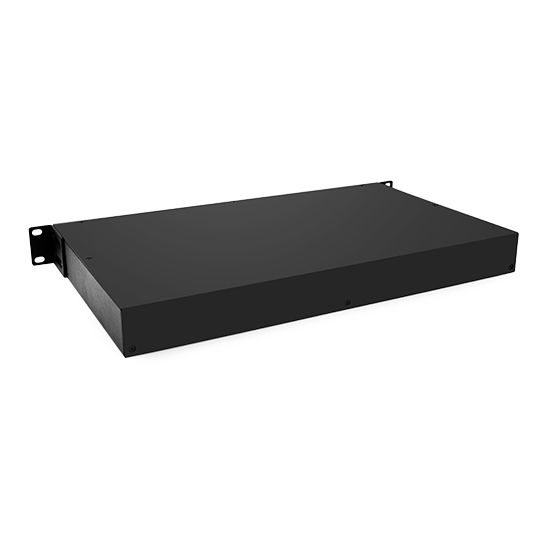

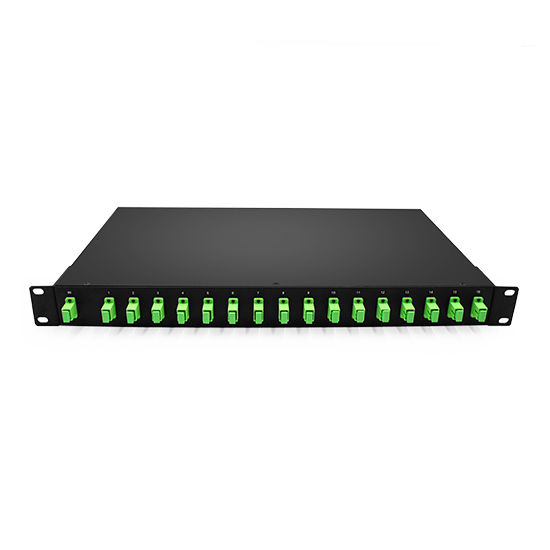

1×16 — 1×16 PLC fiber optic splitter with low insertion loss is designed for FTTX applications. It features a single-mode SC/APC connector and can be mounted in a 1U rack.
产品详情
| 产品参数 — F-tone | |||
| 封装类型 | Rack Mount | 配置类型 | 1X16 |
| 连接头类型 | SC/APC | 光纤类型 | G657A1 or Customer Specified |
| 插入损耗 | ≤13.7dB | 损耗均匀性 | ≤1.2dB |
| 偏振相关损耗 | ≤0.25dB | 回波损耗 | ≥50dB |
| 波长相关损耗 | ≤0.5dB | 方向性 | ≥55dB |
| 工作波长 | 1260~1650nm | 尺寸(HxWxD) | 44×482.6x250mm |
| 工作温度 | 商业级/工业级/军品级可选 | 存储温度 | 商业级/工业级/军品级可选 |
| 封装类型 | Rack Mount | 配置类型 | 1X16 |
| 连接头类型 | SC/APC | 光纤类型 | G657A1 or Customer Specified |
| 插入损耗 | ≤13.7dB | 损耗均匀性 | ≤1.2dB |
| 偏振相关损耗 | ≤0.25dB | 回波损耗 | ≥50dB |
| 波长相关损耗 | ≤0.5dB | 方向性 | ≥55dB |
| 工作波长 | 1260~1650nm | 尺寸(HxWxD) | 44×482.6x250mm |
| 工作温度 | 商业级/工业级/军品级可选 | 存储温度 | -40°C～+85°C |
1×16 PLC Fiber Optic Splitter Low Insertion Loss FTTX Single Mode SC/APC 1U Rack
Quality Assurance
Quality Certification
our advantages
-
Short Lead time
- Fast Delivery
-
Professional Service
- Technical Support
-
Worry-Free Guarantee
- Shopping Satisfactorily
-
Premium Quality
- High stability
How The PLC Splitter Work
Specifications 1xN PLC Splitter
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Operating Wavelength (nm) | 1260-1650 | |||||
| Fiber Type | G657A1 or customer specified | |||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss Uniformit (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2 |
| Polarization Dependent Loss (dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Return Loss(dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability (-40-85’0 (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Packaging | Standard ABS Cassette | Standard LGX Cassette | 1U 19″ Rack Mount | |||
| Package dimension (mm) | 100x80x10 | 157x129x29 | L440 (482.6) xW250xH44 or Specify | |||
| Operating Temperature( C) | -40-+85 | |||||
| Storage Temperature(“C) | -40-+85 | |||||
| Maximum Power Handling (mW) | 500 | |||||
