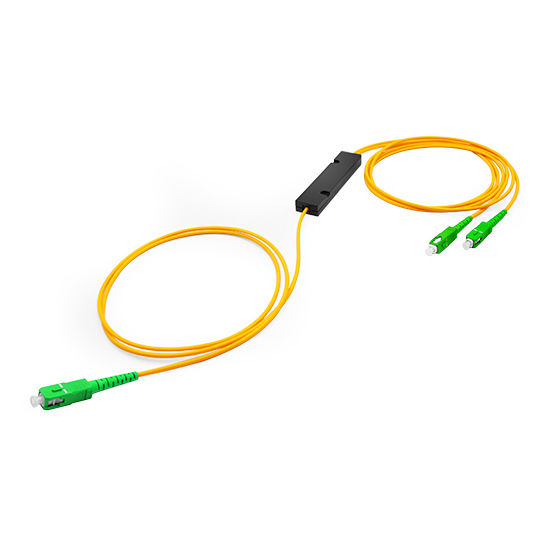

1×2 — 1×2 FBT Couplers Fiber Splitter divides 1 optical signal into 2 outputs. With a standard ABS cassette, and SC/APC connectors for reliable SM transmission.
产品详情
| 产品参数 — F-tone | |||
| 封装类型 | ABS Module | 配置类型 | 1X2 |
| 连接头类型 | SC/APC | 分光比 | 50/50 |
| 插入损耗 | ≤3.8dB | 额外损耗 | ≤0.10dB |
| 偏振相关损耗 | ≤0.2dB | 回波损耗 | ≥50dB |
| Maximum Power Handling | 500mW | 方向性 | ≥55dB |
| 工作波长 | 1310±15nm or 1550±40nm | 尺寸(HxWxD) | 10x20x90mm |
| 工作温度 | 商业级/工业级/军品级可选 | 存储温度 | 商业级/工业级/军品级可选 |
| 封装类型 | ABS Module | 配置类型 | 1X2 |
| 连接头类型 | SC/APC | 分光比 | 50/50 |
| 插入损耗 | ≤3.8dB | 额外损耗 | ≤0.10dB |
| 偏振相关损耗 | ≤0.2dB | 回波损耗 | ≥50dB |
| Maximum Power Handling | 500mW | 方向性 | ≥55dB |
| 工作波长 | 1310±15nm or 1550±40nm | 尺寸(HxWxD) | 10x20x90mm |
| 工作温度 | 商业级/工业级/军品级可选 | 存储温度 | -40°C～+85°C |
1X2 FBT Splitter Dual Window Single Mode Coupler SC/APC
Product Details
Quality Assurance
Excellent quality is the foundation of F-tone’ s survival and development. Our operation team are experts with many years’ experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
本产品为北亿纤通产品线，详细信息，请联系我们的销售人员，谢谢！
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
