产品概述

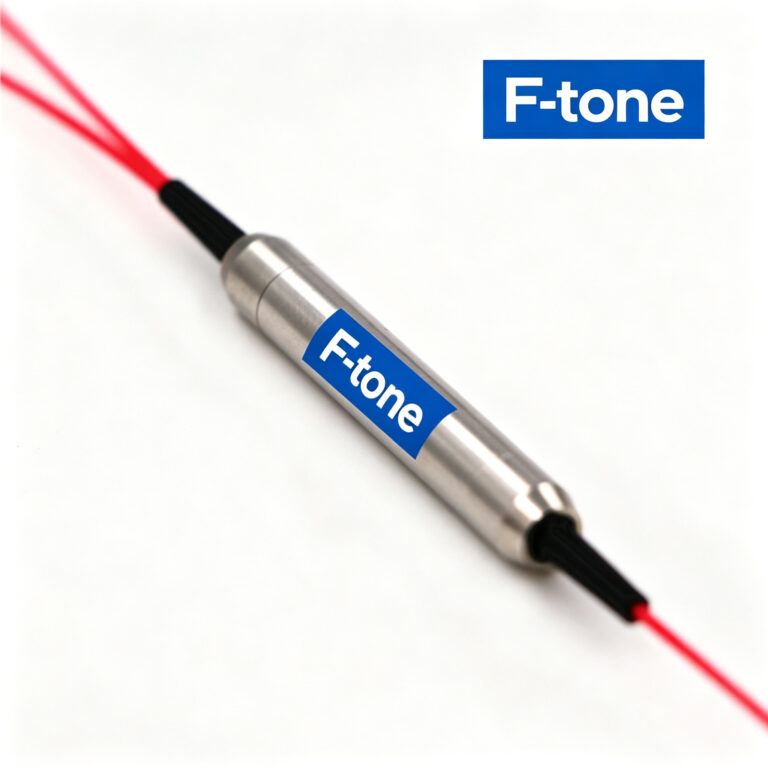

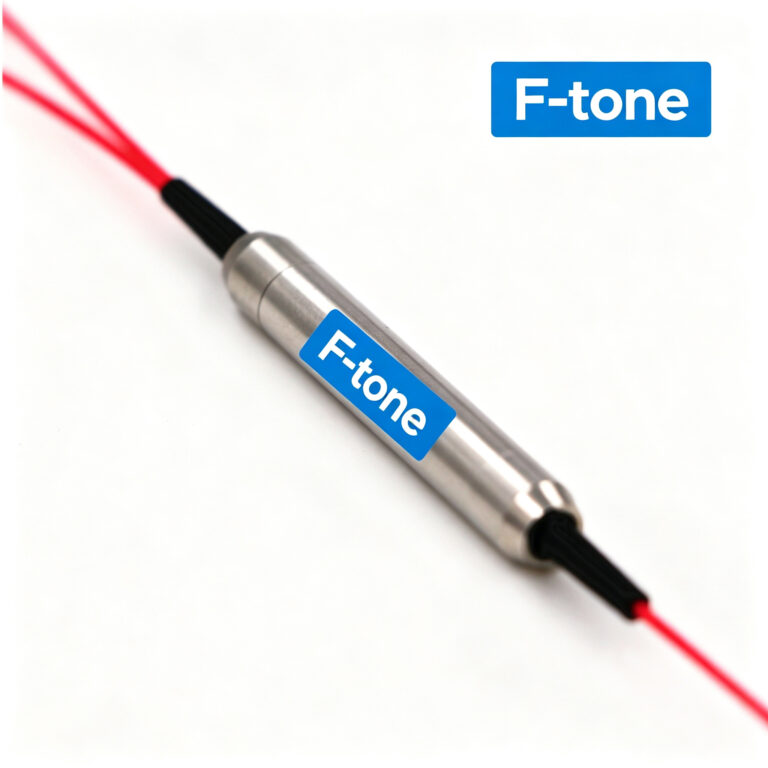

FT-13-PIOC3151111 是三端口偏振无关光环形器，采用无助焊剂金属键合微光学封装，光路无胶。具有高隔离度、低插入损耗与低 PDL，常与光纤光栅及其他反射器件配合用于 DWDM 系统、波长上下路、EDFA 与 OTDR 测量。
工作温度：商业级/工业级/军品级可选
产品特性
- 三端口Port1→2→3环形结构
- 工作波长1310±30/1550±30nm
- 典型隔离度≥50dB
- 插入损耗典型0.8dB
- PDL<0.15dB，光路无胶
- 紧凑钢筒封装Φ5.5xL50
应用场景
- 光纤放大器 EDFA
- 城域网系统
- 波长上下路复用
- 色散补偿
- 双向通信与OTDR测量
技术规格
| 参数 | 符号 | 最小值 | 典型值 | 最大值 | 单位 |
|---|---|---|---|---|---|
| 配置 | – | – | Port1→Port2→Port3 | – | – |
| 工作波长 | λ | – | 1310±30,1550±30 | – | nm |
| 插入损耗(典型) | IL | – | 0.8 | – | dB |
| 插入损耗(最大) | IL | – | – | 1.0 | dB |
| 隔离度(典型) | Iso | 50 | – | – | dB |
| 隔离度(最小) | Iso | 40 | – | – | dB |
| 串扰 | – | 50 | – | – | dB |
| 偏振相关损耗 | PDL | – | – | 0.15 | dB |
| 回波损耗 | RL | 50 | – | – | dB |
| 最大光功率 | – | – | – | 300 | mW |
本产品为北亿纤通产品线，详细信息，请联系我们的销售人员，谢谢！
