产品概述

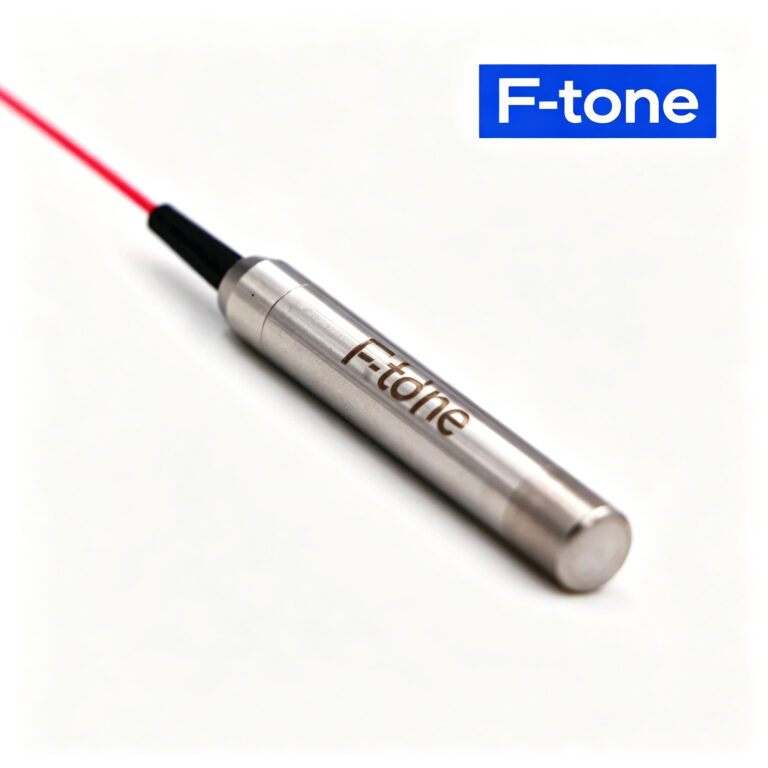

北亿纤通（F-tone Networks）FT-13-CIR-3314114是一款三端口单模光环形器，采用紧凑的钢管式在线封装（Φ5.5×38mm），工作波长1310±20nm，信号按端口1→2→3依次导通。器件具有低插入损耗、高隔离度、低偏振相关损耗的特点，光路上无胶，高稳定性和可靠性。
工作温度：商业级/工业级/军品级可选
产品特性
- 低插入损耗：典型值1.0dB，最大值1.2dB
- 高隔离度：典型值≥50dB，最小值≥40dB
- 低偏振相关损耗：＜0.15dB，串扰≥50dB
- 紧凑钢管式在线封装：Φ5.5×38mm
- 光路上无胶，高稳定性和可靠性
- 0.9mm松套管，1m尾纤，FC/APC接头
应用场景
- 光纤放大器
- 城域网
- 波长上下话路
- 色散补偿
- 双向通信
技术规格
| 参数 | 符号 | 最小值 | 典型值 | 最大值 | 单位 |
|---|---|---|---|---|---|
| 工作波长 | – | 1290 | 1310 | 1330 | nm |
| 插入损耗 | – | – | 1.0 | 1.2 | dB |
| 隔离度 | – | 40 | ≥50 | – | dB |
| 串扰 | – | 50 | – | – | dB |
| 偏振相关损耗 | – | – | – | 0.15 | dB |
| 回波损耗 | – | 50 | – | – | dB |
| 最大承受功率 | – | – | – | 300 | mW |
| 工作温度 | – | -10 | – | 75 | ℃ |
| 封装尺寸 | – | – | Φ5.5×38 | – | mm |
本产品为北亿纤通产品线，详细信息，请联系我们的销售人员，谢谢！
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
